Description
Contents: (1) 6” dial, luminescent dial for visibility in low light, (1) Rear mounting bracket, (1) ADCUFF™ inflation system with black nylon cuff, Size Guide™ marking system, premium latex-free bladder and bulb and 8‘ (when extended) coiled tubing with luer connectors, all necessary hardware and instructions and ABS cuff storage compartment in main unit
Sphyg Accuracy: +/-3mmHg @ 50ºF(10ºC) – 104ºF(40ºC)

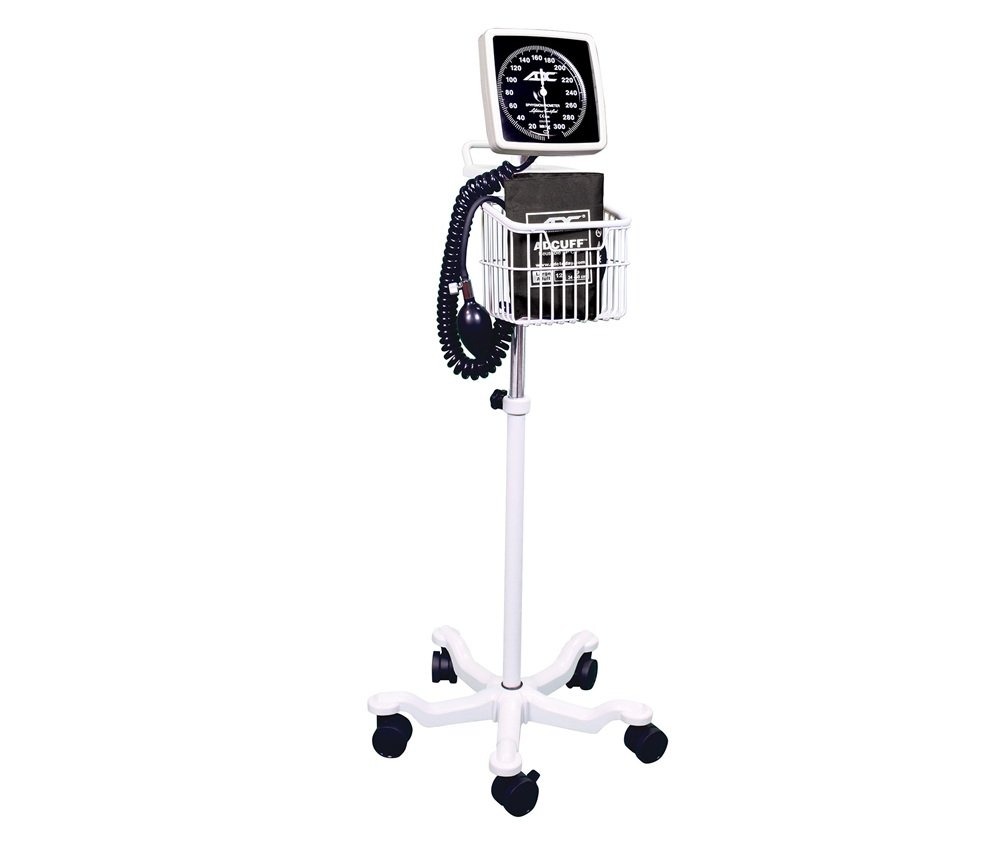

The 752M offers our clock-face aneroid with a versatile mobile platform for the ultimate in portability.
The traditional Adcuff variation features two-piece cuffs and bladders:
- Durable 210 denier nylon construction
- Integral flap that secures bladder and prevents bulging
- ADC’s proprietary Size Guide marking system prevents mis-cuffing
- Longer limb ranges for improved patient coverage
- Gauge hang tab (on most sizes), bladder flap, and “property of” tag
- Hook-and-loop adhesive rated to a minimum of 30,000 open/close cycles
- Three-year warranty on cuffs
Gauge features:
- Clock-style gauge with a large, easy-to-read, 6” luminescent dial for high visibility in virtually any light condition
- Precision-crafted, 300mmHg Japanese engineered manometer with no-pin stop movement, withstands the heaviest use
- Winter white wraparound bezel for a finished look
- Manometer angled back 15° for easy viewing
Mobile stand features:
- Height-adjustable Spider-Leg™ caster stand with range of 34” to 48” (from bottom of base to top of unit)
- Stand base has an 18” diameter with five black casters, two with locking brakes
- Complete with basket and all necessary hardware and assembly instructions (some assembly required)
Other features:
- Adcuff inflation system with nylon cuff, Adflow bulb and valve, and eight-foot length (when extended) coiled tubing
- Adflow filter screen check and deflation valve for reduced dust build-up
- Adflow chrome-plated brass air release valve with micro-threads for precise deflation control
- Lifetime calibration warranty
Made without phthalates or natural rubber latex. Assembled, inspected, and packaged in the U.S.A from foreign components. Meets or exceeds ANSI/AAMI/ISO 81060-1.
